GB4028

Promotion High-preformance Semi-auto Horizontal Band Saw Machine

1,Three speed turbine speed regulation .

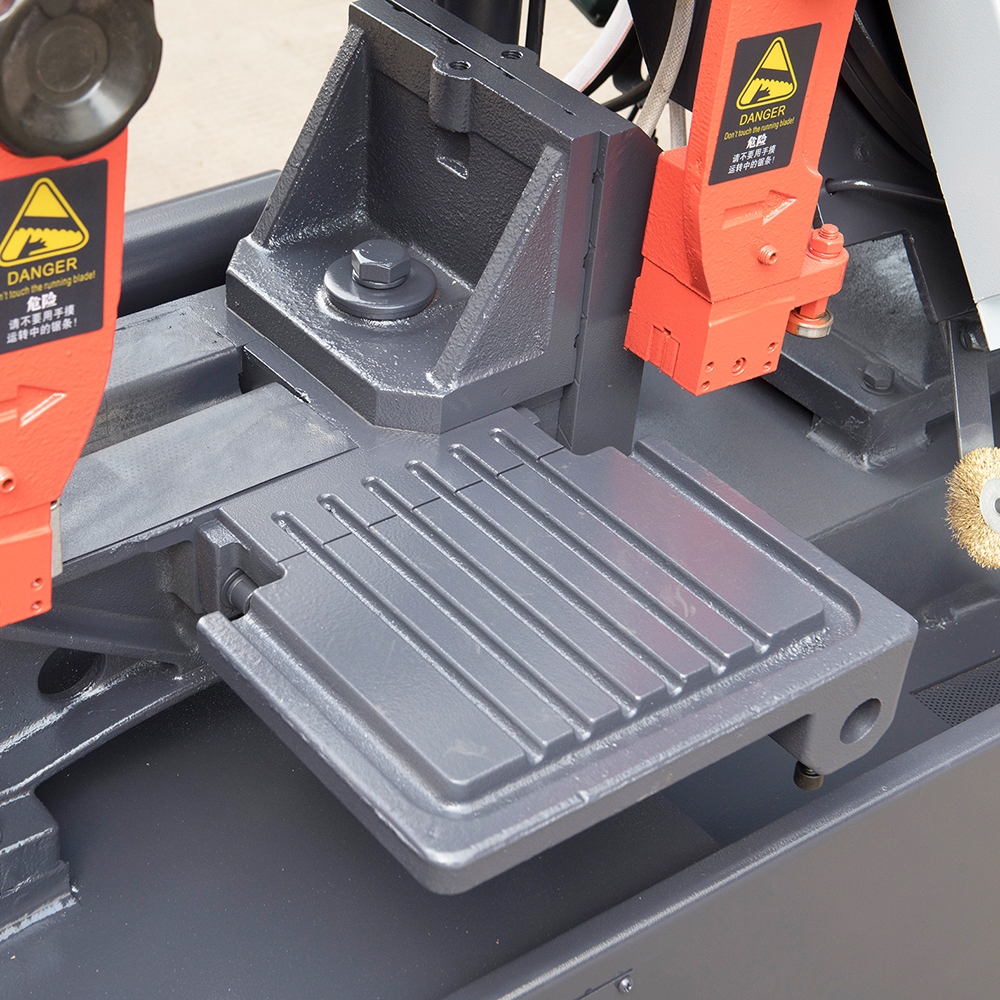

2, High-precision and adjustable guide clamping device , the blade low wastage , high-precision and high-speed .
3, High quality hydraulic cylinder , sealing, to ensure the oil-way procession .
4, Hydraulic control valve set up the best cutting pressure ,  the blade with long service life .
5, Stepless speed feeding , movable material rack , manual blade tension .


Product Parameters

Model : GB4028
Maximum Cutting Capacity(mm)
Round (mm)
≤280
Rectangle (mm)
380W*220H
Saw Blade
Speed (m/min)
30/53/76 m/min
Size (mm)
27*0.9*3505
Blade Tension
Manual
Motor Power
Main Motor
2.2KW
Hydraulic Motor
0.42KW
Coolant Pump
40W
Machine Structure
Main column
Square column and round column
Lifting control
Cylinder drive
Machine Size & Weight
Size (MM)
1860*1000*1500
Weight
600kg
Other Device
Workpiece clamping way
Hydraulic horizontal clamp
Feeding way
Hydraulic automatic feed
Water tank volume
40L
Hydraulic tank volume
40L
working voltage
AC380V/50HZ
