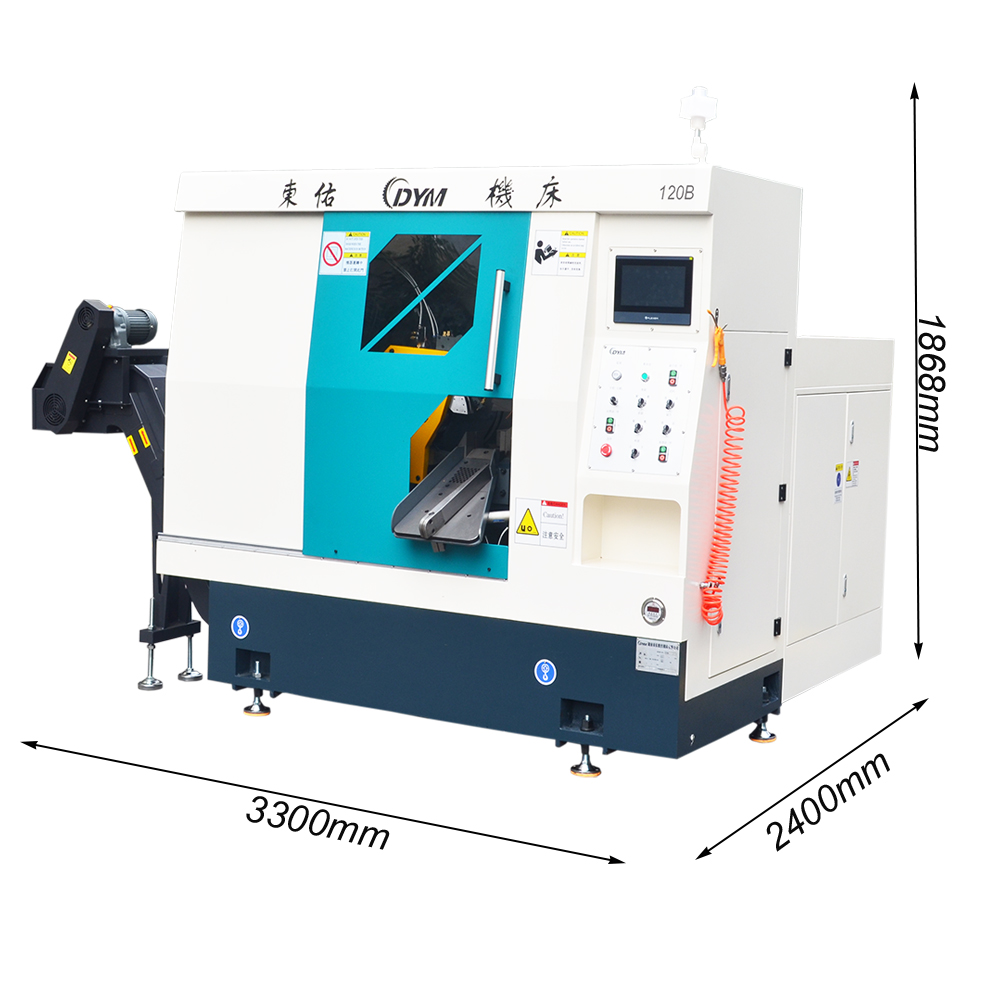

DYM-120B
- Product Item : DYM-110B
- Category： Metal Circular Saw Machine
- CNC Automation Control
- One-Piece Machine Foundation
- Lubrication Cooling System
- AC Servo Motor
CNC High speed metal circular saw machine
Main Technical Parameters:
Model
DYM-75C
DYM-85C
DYM-100C
DYM-120C
DYM-150C
DYM-230C
DYM-260C
Cutting Capacity
Round
Ф12-75mm
Ф12-85mm
Ф20-100mm
Ф15-120mm
Ф50-150mm
Ф80-230mm
Ф120-260mm
Rectangle
12-55mm
12-55mm
20-65mm
15-55mm
50-110mm
80-180mm
120-195mm
Round Tube
Ф12-75mm
Ф12-85mm
Ф20-100mm
Ф15-120mm
Ф50-150mm
Ф80-230mm
Ф120-260mm
Rectangle Tube
12-55mm
12-55mm
20-65mm
15-55mm
50-110mm
80-180mm
120-195mm
Head Spindle
TCT Saw Blade
Ф285mm T1.75mm
Ф300mm T1.75mm
Ф360mm T2.25mm
Ф400mm T2.25mm
Ф460mm T2.25mm
Ф750mm T3.2mm
Ф840mm T3.0mm
Pin Hole and Aperture
4xφ11xPCD63xφ32
4xφ11xPCD63xφ32
4xφ12xPCD90xφ40
4xφ12xPCD90xφ40
4xφ12xPCD90xφ50
4xφ23xPCD160xφ80
4xφ26xPCD150xφ80
Blade Speed
30-160rpm
30-160rpm
30-130rpm
30-130rpm
30-100rpm
10-70rpm
10-70rpm
Spindle Motor
11KW(6P)
18.5KW(6P)
45KW(6P)
45KW(6P)
Sawing Method
Horizontal sawing
Cut Feed Mode
AC Servo Motor+Ball Screw /Swing Feed+Linear Guide
Main Clamp Way
Hydraulic Type/Vertical and Horizontal Clamping of Each Group
Automatic Feeding Device
Feeding Drive Mode
AC Servo Motor+Ball Screw /Swing Feed+Linear Guide
Feeding Clamp Way
Hydraulic Clamped
Trim Length
10-99mm
Remnant Length
80mm+α
80mm+α
80mm+α
80mm+α
85mm+α
130mm+α
130mm+α
Single Feed Length
8-650mm
8-650mm
8-700mm
8-650mm
10-850mm
20-1000mm
20-1000mm
Length of Material
4000-6000mm
Supply Mode
Hydraulic Lifting
Material Area
900mm
900mm
900mm
900mm
980mm
980mm
980mm
Hydraulic Device
Hydraulic Drive Motor
2.2KW(3HP)
2.2KW(3HP)
3.75KW(5HP)
3.75KW(5HP)
3.75KW(5HP)
5.5KW(7HP)
5.5KW(7HP)
Hydraulic Rated Pressure
5Mpa
5Mpa
5Mpa
5Mpa
5Mpa
7Mpa
7Mpa
Hydraulic Oil Capacity
100L
100L
100L
100L
100L
120L
120L
Pneumatic Device
Pressure
50-80 psi
Machine Size & Weight (loader included)
Size(mm)
6900*2300*1800
6915*2308*1716
7000*2890*1868
6915*2415*1716
7370*3200*2020
8765*4168*2180
8100*4686*2705
Weight(kg)
3200
3300
3700
3700
4500
17000
30000
